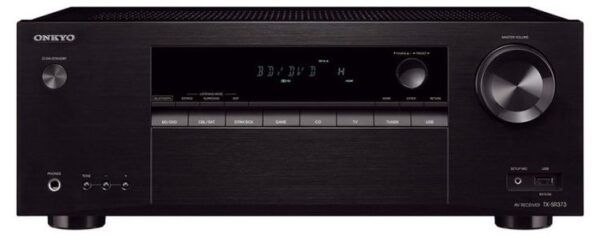

רסיבר ONKYO TX-SR373

רסיבר 5.1 לקולנוע ביתי ONKYO
דגם TX-SR373 2018
תמיכה ב תקן HDCP 2.2 החדש – לתמיכה בכל הציוד העדכני
4 כניסות HDMI המתקדם ביותר
BLUETOOTH מובנה להזרמת מוזיקה אלחוטית
מגוון התכונות הייחודיות , והמחיר המפתיע , הופכות את הרסיבר של
ONKYO לרכישה כדאית ומשתלמת במיוחד
תמיכה בכל הפורמטים החדשים Dolby® TrueHD and DTS-HD Master Audio
עוצמה 135 וואט RMS לכל ערוץ
תפריט OSD + BY PASS
יכולת UP CONVERT
343-2
5.1-Channel A/V Receiver
Surround Sound for Immersive 4K Entertainment
Behind the freshly styled faceplate of the TX-SR343 is high-current Wide Range Amplification Technology to transform your movie, television, and gaming experiences.
This receiver has the latest HDMI® connections and supports HDCP 2.2, which means you can stream UltraHD video and spin next-generation 4K Blu-rays.
The TX-SR343 is also ready to power and play USB video-subscription streaming devices.
The TX-SR343 can up-convert analog video (such as VHS tapes) and send it to your TV through a single HDMI cable for improved picture quality.
There’s Bluetooth streaming with audio optimization, and a Burr-Brown DAC to ensure your music is played with pure energy.
It’s quite simply our best budget A/V receiver ever.

100 W per Channel
HDMI 4 In / 1 Out (4K UltraHD / HDCP 2.2)
True Driving Power from Discrete Amp Circuits
Bluetooth Wireless Audio Streaming
Easy Configuration Rear Panel
HDMI Video Up-Conversion
Streaming Media Player Ready
ADVANCED FEATURES

4K/60 Hz-Capable HDMI® Terminals for UltraHD Entertainment
Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2, AVRCP v1.3)
Analog Video Upconversion to HDMI
Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range
AMPLIFIER FEATURES

100 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC); 120 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, JEITA)
WRAT (Wide Range Amplifier Technology)
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Discrete Output Stage Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
PROCESSING FEATURES

HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™,
LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
TI Burr-Brown 192 kHz/24-bit DAC for All Channels
Advanced 32-bit DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
CinemaFILTER™
Direct Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory
CONNECTION FEATURES

4 HDMI Inputs and 1 Output
USB Port (Rear) for Powering Media Streaming Sticks (5 V, 1 A)
2 Component Video Inputs (Rear)
3 Composite Video Inputs (1 Front/2 Rear)
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
7 Analog Audio Inputs (1 Front/6 Rear)
Subwoofer Pre-Out
Headphone Jack
OTHER FEATURES

Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
HDMI Passthrough Function
Tone Control (Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
RIHD (Remote Interactive Over HDMI) for System Control
Full-Function RI (Remote Interactive) Remote Control
HDMI® 4 In / 1 Out for UltraHD

All HDMI terminals support the latest TV 4K/60 Hz video displays,
and comply with HDCP 2.2 copy protection encoded in content from movie studios,
broadcasters, and streaming services, for next-generation UltraHD.

True Power from Discrete Amplifiers

Discrete Amps deliver high instantaneous current to increase speaker control for accurate and
dynamic audio reproduction. This precise power is the cornerstone of Onkyo’s amplification philosophy.

Easy Connection Guide on Back Panel

Connections to speakers and external devices are illustrated and clearly labeled on the back panel.

Bluetooth Audio Streaming

Stream virtually any audio from your smartphone, tablet, or PC to your home cinema for clear and powerful sound.

HDMI Video Up-Conversion

Only one wire! Every video signal is converted and sent to your TV through one HDMI cable.

Ready for Streaming Media Devices

The handy USB port supplies power to streaming media players.
Keep up with your video subscription services and other programs streamed from the Internet.

GENERAL SPECIFICATIONS

Power Output: 100 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC);
120 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, JEITA)

Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Dimensions (W x H x D): 435 x 160 x 328 mm

Weight: 8.0 kg

אחריות ל-3 שנים ע”י טופ אודיו היבואן הרשמי !
